Arduino Control System Turning on the Pump

Back to allograft preservation page



We used 24V DC output from the arduino control system for relay switch.

The relay switch completes the connection between external stop/start pins (8 and 14 in the peristaltic pump)when 24V is given.

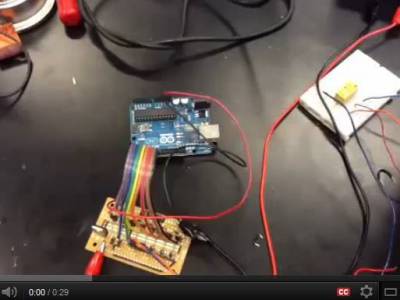

Video 1. Arduino Control System turning on the pump
